| 加工定制：是 | 品牌：以色列OPHIR | 型号：VEGA |
| 测量范围：参考技术参数 | 测量精度：参考技术参数 | 外形尺寸：参考技术参数mm |
| 用途：参考技术参数 | 标准装箱数：参考技术参数pcs | 长度：参考技术参数mm |
| 放大率：参考技术参数 | 工作温度：参考技术参数°C | 十字线：参考技术参数 |
| 视野：参考技术参数m@100m | 物镜直径：参考技术参数mm | 序列号：参考技术参数 |
| 重量：参考技术参数Kg | 规格：参考技术参数 |

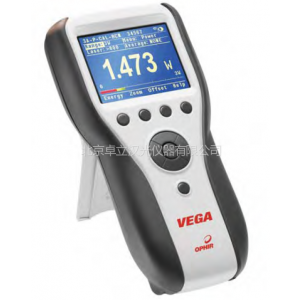

VEGA-Color Screen Laser Power/Energy Display
| 鈼� Compatible with all Ophir thermal, pyroelectric and photodiode heads 鈼� Brilliant color large size TFT 320x240 display 鈼� Compact handheld design with rubberized bumpers and optimized kickstand 鈼� Choice of digital or analog needle display 鈼� Illuminated keys for working in the dark 鈼� Analog output 鈼� Log every point at up to 4000Hz with pyro heads 鈼� Non volatile data storage up to 200,000 points 鈼� Laser tuning screen and power and energy log 鈼� USB and RS232 output to PC with Statistics package 鈼� NIST traceable and CE marked 鈼� Soft keys and menu driven functions with on line help 鈼� Many software features such as density, min/max, scaling etc. |  |
NOVA II-Versatile Laser Power/Energy Display
| 鈼� Compatible with all Ophir thermal, pyroelectric and photodiode heads 鈼� Large high definition LCD display 鈼� Choice of digital or analog needle display 鈼� 2 position kickstand 鈼� Backlighting and rechargeable battery 鈼� Analog output 鈼� Log every point at up to 4000Hz with pyro heads 鈼� Non volatile data storage up to 50,000 points 鈼� Laser tuning screen and power and energy log 鈼� USB and RS232 output to PC with statistics package 鈼� NIST traceable and CE marked 鈼� Soft keys and menu driven functions with on-line help 鈼� Many software features such and density, min/max, scaling etc. | |
Laserstar-Versatile Laser Power/Energy Meter鈼� Two models available: dual and single channel
鈼� Single channel model can be upgraded to dual channel
鈼� Compatible with all Ophir thermopile, pyroelectric, photodiode and RP heads
鈼� Large LCD display
鈼� Backlighting and rechargeable battery
鈼� Screen graphics and statistics (std dev. min, max)
鈼� Analog output
鈼� Built-in RS232 interface
鈼� Log every data point at >1500Hz with pyroelectric heads
鈼� Non-volatile data storage up to 50,000 points
鈼� Laser tuning screen and power log
鈼� Audio sound for laser tuning and low battery
鈼� Statistics package
鈼� GPIB option (IEEE488.1)
鈼� NIST traceable
鈼� CE marked
鈼� Soft keys, menu-driven
