| 加工定制：是 | 品牌：卓立汉光 | 型号：小型红外光源 |
| 测量范围：参考技术参数 | 测量精度：参考技术参数 | 外形尺寸：参考技术参数mm |
| 用途：参考技术参数 | 标准装箱数：参考技术参数pcs | 长度：参考技术参数mm |
| 放大率：参考技术参数 | 工作温度：参考技术参数°C | 十字线：参考技术参数 |
| 视野：参考技术参数m@100m | 物镜直径：参考技术参数mm | 序列号：参考技术参数 |
| 重量：参考技术参数Kg | 规格：参考技术参数 |

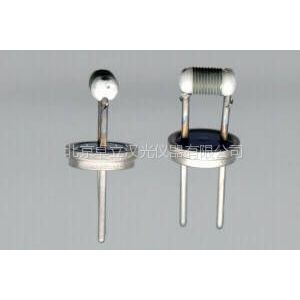

R-12 & IR-12R
| 鈼� Voltage: 5 Volts (AC or DC) 鈼� Temperature: 900鈩� 鈼� Current: 2 Amps 鈼� Power: 10.0 Watts 鈼� Active area: 3.5 mm x 3.5 mm 鈼� Emissivity: 0.80 鈼� Lifetime: 30,000 hours at 5V, typical 鈼� The IR-12 part uses a high stability wire whereas the IR-12K uses Kanthal resistance wire for operation at higher temperatures. Apart from the wire used, the IR-12 and IR- 12K are identical. 鈼� The IR-12R is a standard IR-12 fabricated with the header flange in the reverse direction. |
IR-21 and IR-21V
| 鈼� Voltage: 5 Volts (AC or DC) 鈼� Temperature: 800鈩� 鈼� Current: 0.8 Amps 鈼� Power: 4.0 Watts 鈼� Active area: 1.5 mm x 3.5 mm 鈼� Emissivity: 0.80 鈼� Lifetime: 3+ years at 800鈩�, typical | |
IR-22 and IR-22V
| 鈼� Voltage: 4.5 Volts (AC or DC) 鈼� Temperature: 800鈩� 鈼� Current: 0.75 Amps 鈼� Power: 3.4 Watts 鈼� Active area: 1.5 mm x 3.5 mm 鈼� Emissivity: 0.80 鈼� Lifetime: 3+ years at 800鈩�, typical 鈼� The header is available in two sizes. The larger, IR-21, has an 8.6 mm diameter base. Thesmaller, IR-22, has a 4 mm diameter base. The support pins, which are also the power leads,are hermetically sealed in glass. 鈼� The IR-20 Series is offered in two configurations: the IR-21 and IR-22 have the element mounted horizontally and the IR-21V and IR-22V which have the element mounted vertically. |
IR-30 Series鈼� Active area: 1.8 mm x 1.8 mm
鈼� Emissivity: ~0.75
鈼� Temperature: 950鈩�
鈼� Voltage: 2.5 Volts (AC or DC)
鈼� Current: 1.7 Amps
鈼� Lifetime: ~25,000 hours
鈼� IR-35 Normalized On-Axis Output:11x the output of the IR-30
鈼� The IR-35 is the IR-30 with a parabolic reflector to collimate the energy.
IR-40鈼� Voltage: 35 Volts (AC or DC)
鈼� Temperature: 600鈩�
鈼� Current: 115 mA
鈼� Power: 4.0 Watts
鈼� Active area: 3.5 mm x 2.5 mm
鈼� Emissivity: 0.80
鈼� Lifetime: 3+ years at 600鈩�, typical
鈼� The IR-40 unit is attached to a TO-5 header with high temperature cement. This unit is also offered without a cap (as an IR-40NC) and with a cap and sapphire window (as an IR-40S).
IR-43鈼� Voltage: 14 Volts (AC or DC)
鈼� Temperature: 600鈩�
鈼� Current: 90 mA
鈼� Power: 1.3 Watts
鈼� Active area: 1.5 mm x 1.5 mm
鈼� Emissivity: 0.80
鈼� Lifetime: 3+ years at 600鈩�, typical
鈼� The IR-43 unit is free standing on a TO-5 header. It requires less power to achieve the same temperature as the IR-40. Without a directly connected mass to draw of heat, it is more responsive.
IR-50, IR-55 and IR-56鈼� Voltage: 6.4 Volts (AC or DC)
鈼� Temperature: 750鈩�
鈼� Resistance in the Hot state*: 50 ohms
鈼� Current: 135 mA
鈼� Power: 0.9 Watts
鈼� Cooling Time Constant: 11.5ms
鈼� Heating Time Constant: 35 ms
鈼� Modulation Depth: 50% at 63 Hz, 50% Duty Cycle
鈼� Active area: 1.7mm x 1.7mm
鈼� IR-55: Lamp mounted in parabolic reflector (no window)
鈼� IR-56:As per the IR-55 but with a smaller parabolic reflector allowing operation in a
smaller envelope. 9.1mm x 10.2mm diameter
鈼� Lifetime(constant operation is approximately half these figures):
鈼� 6+ months at 750鈩� 10Hz 50% Duty Cycle, typical
鈼� 3+ years at 600鈩� 10Hz 50% Duty Cycle, typical
鈼� 8+ years at 450鈩� 10Hz 50% Duty Cycle, typical
鈼� * Measured at 5 Hz frequency, 50% duty cycle.
IR-60, IR-65 and IR-66鈼� Drive Voltage at 750鈩�: 6.7 +/- 0.4 Volts (AC or DC)
鈼� Temperature: 450鈩� to 750鈩�
鈼� Resistance in the Hot state*: 45 ohms (nominal) in hot state
鈼� Current at 750鈩�: 149 mA
鈼� Power input at 750鈩�: 1.0 Watts
鈼� Spectral Range: 1 to 20 microns
鈼� Emissivity: 0.8 (in the range of 2 to 14 microns)
鈼� Modulation Depth: 50% at 70 Hz, 25% Duty Cycle
鈼� Active area: 2.2 mm x 2.2 mm
鈼� Lifetime: 100,000h at 450鈩�; 40,000h at 600鈩�; 5,000h at 750鈩� of operation (10 hertz
at 50% duty cycle)
鈼� Output 25-30% greater than the IR-50
鈼� The IR-65 utilizes a collimated Optic to provide more than 12x the on-axis output. The
package is 0.5 inches in diameter and 0.65 inches long. FWHM (full width at half max)
for the IR-65 is 15掳
鈼� As per the IR-65 but has just 36% of the IR-65 size. The package is 0.40 inches in
diameter and 0.36 inches long. And yet it delivers 50% to 75% of the IR-65 on-axis
output energy. FWHM (full width at half max) for the IR-66 is 20掳
